不鏽鋼 鈦合金用全鎢鋼不等分割不等導程強力型圓鼻銑刀-圓鼻刀刃型（長刃型）
圓鼻刀刃型（長刃型）

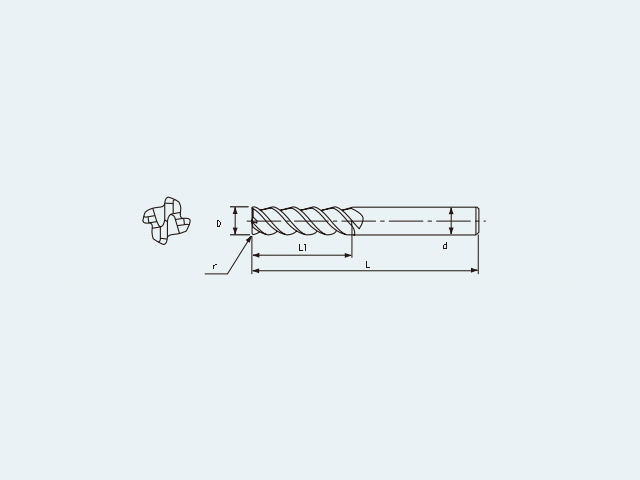

產品規格
STC-LP9
單位(Unit): mm
| 型號 Code |
直徑 DC |
圓鼻 Radius |
刃長 APMX |
全長 OAL |
柄徑 DCON |
在庫 Stock |
|---|---|---|---|---|---|---|
| EPMVL4030S-R02-6-4D | 3 | 0.2R | 12 | 60 | 6 | ☐ |
| EPMVL4030S-R05-6-4D | 3 | 0.5R | 12 | 60 | 6 | ☐ |
| EPMVL4040S-R02-6-4D | 4 | 0.2R | 16 | 60 | 6 | ☐ |
| EPMVL4040S-R05-6-4D | 4 | 0.5R | 16 | 60 | 6 | ☐ |
| EPMVL4040S-R10-6-4D | 4 | 1R | 16 | 60 | 6 | ☐ |
| EPMVL4050S-R02-4D | 5 | 0.2R | 20 | 60 | 6 | ☐ |
| EPMVL4050S-R05-4D | 5 | 0.5R | 20 | 60 | 6 | ☐ |
| EPMVL4060S-R03-4D | 6 | 0.3R | 24 | 60 | 6 | ☐ |
| EPMVL4060S-R05-4D | 6 | 0.5R | 24 | 60 | 6 | ☐ |
| EPMVL4060S-R10-4D | 6 | 1R | 24 | 60 | 6 | ☐ |
| EPMVL4080S-R03-4D | 8 | 0.3R | 32 | 75 | 8 | ☐ |
| EPMVL4080S-R05-4D | 8 | 0.5R | 32 | 75 | 8 | ☐ |
| EPMVL4080S-R10-4D | 8 | 1R | 32 | 75 | 8 | ☐ |
| EPMVL4080S-R20-4D | 8 | 2R | 32 | 75 | 8 | ☐ |
| EPMVL4100S-R03-4D | 10 | 0.3R | 40 | 100 | 10 | ☐ |
| EPMVL4100S-R05-4D | 10 | 0.5R | 40 | 100 | 10 | ☐ |
| EPMVL4100S-R10-4D | 10 | 1R | 40 | 100 | 10 | ☐ |
| EPMVL4100S-R20-4D | 10 | 2R | 40 | 100 | 10 | ☐ |
| EPMVL4120S-R05-4D | 12 | 0.5R | 48 | 100 | 12 | ☐ |
| EPMVL4120S-R10-4D | 12 | 1R | 48 | 100 | 12 | ☐ |
| EPMVL4120S-R20-4D | 12 | 2R | 48 | 100 | 12 | ☐ |
| EPMVL4120S-R30-4D | 12 | 3R | 48 | 100 | 12 | ☐ |
| EPMVL4160S-R05-4D | 16 | 0.5R | 64 | 120 | 16 | ☐ |
| EPMVL4160S-R10-4D | 16 | 10R | 64 | 120 | 16 | ☐ |
| EPMVL4160S-R20-4D | 16 | 20R | 64 | 120 | 16 | ☐ |
| EPMVL4160S-R30-4D | 16 | 30R | 64 | 120 | 16 | ☐ |
| EPMVL4200S-R05-4D | 20 | 0.5R | 80 | 150 | 20 | ☐ |
| EPMVL4200S-R10-4D | 20 | 1R | 80 | 150 | 20 | ☐ |
| EPMVL4200S-R20-4D | 20 | 2R | 80 | 150 | 20 | ☐ |
| EPMVL4200S-R30-4D | 20 | 3R | 80 | 150 | 20 | ☐ |
⚫：表示在庫
☐：表示無庫存，為訂製生產品
☆ 特殊圓鼻刀規格歡迎來電洽詢訂製
