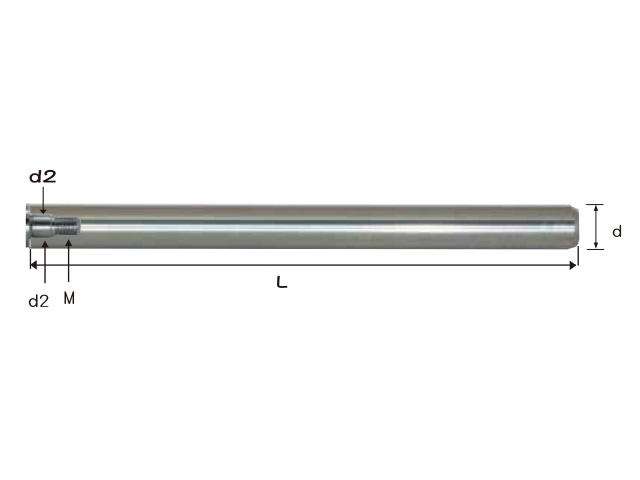

全鎢鋼抗震接桿
產品規格
單位(Unit): mm
| 型號Code | 外徑*全長DC | 螺紋M | d2d2 |
|---|---|---|---|
| ASC08-M4-4.5-100 | 8*100 | M4*0.7 | 4.5 |
| ASC08-M4-4.5-150 | 8*150 | M4*0.7 | 4.5 |
| ASC08-M5-5.5-110 | 8*110 | M4*0.8 | 5.5 |
| ASC08-M5-5.5-150 | 8*150 | M4*0.8 | 5.5 |
| ASC10-M5-5.5-100 | 10*100 | M5*0.8 | 5.5 |
| ASC08-M5-5.5-150 | 10*150 | M5*0.8 | 5.5 |
| ASC08-M5-5.5-200 | 10*200 | M5*0.8 | 5.5 |
| ASC12-M6-6.5-100 | 12*100 | M6*1.0 | 6.5 |
| ASC12-M6-6.5-150 | 12*150 | M6*1.0 | 6.5 |
| ASC12-M6-6.5-200 | 12*200 | M6*1.0 | 6.5 |
| ASC16-M8-8.5-100 | 16*100 | M8*1.25 | 8.5 |
| ASC16-M8-8.5-150 | 16*150 | M8*1.25 | 8.5 |
| ASC16-M8-8.5-200 | 16*200 | M8*1.25 | 8.5 |
| ASC16-M8-8.5-250 | 16*250 | M8*1.25 | 8.5 |
| ASC20-M10-10.5-100 | 20*100 | M10*1.5 | 10.5 |
| ASC20-M10-10.5-150 | 20*150 | M10*1.5 | 10.5 |
| ASC20-M10-10.5-200 | 20*200 | M10*1.5 | 10.5 |
| ASC20-M10-10.5-250 | 20*250 | M10*1.5 | 10.5 |
| ASC20-M10-10.5-300 | 20*250 | M10*1.5 | 10.5 |
| ASC25-M12-12.5-100 | 25*100 | M12*1.75 | 12.5 |
| ASC25-M12-12.5-150 | 25*150 | M12*1.75 | 12.5 |
| ASC25-M12-12.5-200 | 25*200 | M12*1.75 | 12.5 |
| ASC25-M12-12.5-250 | 25*250 | M12*1.75 | 12.5 |
| ASC25-M12-12.5-300 | 25*250 | M12*1.75 | 12.5 |
| ASC32-M16-17-150 | 32*150 | M16*2.0 | 17 |
| ASC32-M16-17-200 | 32*200 | M16*2.0 | 17 |
| ASC32-M16-17-250 | 32*250 | M16*2.0 | 17 |
| ASC32-M16-17-300 | 32*300 | M16*2.0 | 17 |
| ASC32-M16-17-350 | 32*350 | M16*2.0 | 17 |
| ASC32-M16-17-400 | 32*400 | M16*2.0 | 17 |
