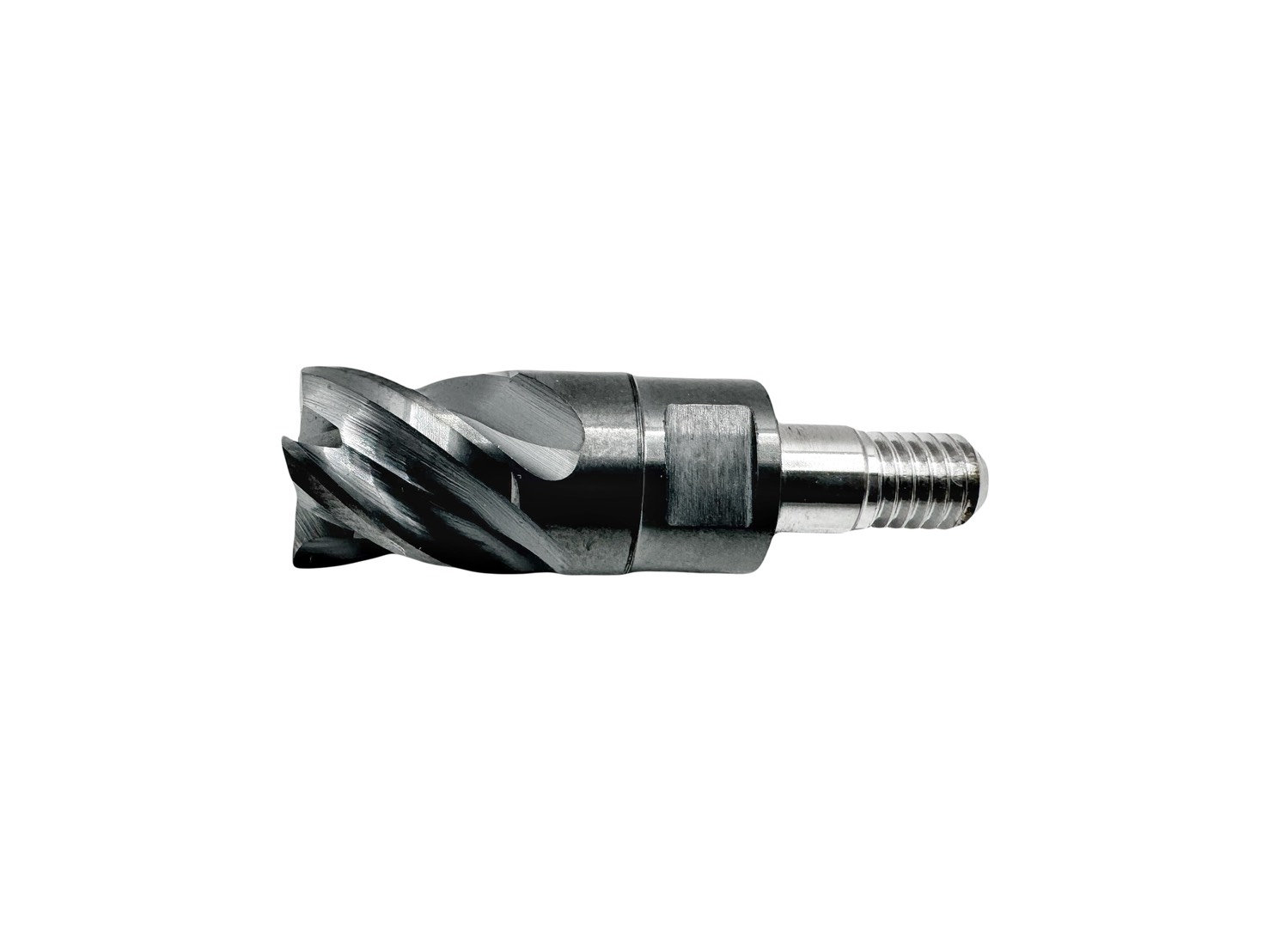

高硬度全鎢鋼不等分割不等導程強力型銑刀-平刀
鎖牙式銑刀
產品規格
單位(Unit): mm
| EPMVL-HC4000-1D 刃長=1D | |||||
|---|---|---|---|---|---|
| 型號Code | 直徑DC | 螺紋Thread size | 刃長APMX | 全長OAL | 在庫Stock |
| EPMVL-HC4080-1D | 8 | M5*0.8 | 8 | 19 | ⚫ |
| EPMVL-HC4090-1D | 9 | M5*0.8 | 8 | 20 | ☐ |
| EPMVL-HC4100-1D | 10 | M5*0.8 | 10 | 22 | ⚫ |
| EPMVL-HC4110-1D | 11 | M5*0.8 | 10 | 23 | ☐ |
| EPMVL-HC4120-1D | 12 | M6*1.0 | 12 | 25 | ⚫ |
| EPMVL-HC4130-1D | 13 | M6*1.0 | 12 | 27 | ☐ |
| EPMVL-HC4160-1D | 16 | M8*1.25 | 15 | 32 | ⚫ |
| EPMVL-HC4170-1D | 17 | M8*1.25 | 15 | 33 | ☐ |
| EPMVL-HC4200-1D | 20 | M10*1.5 | 18 | 37 | ⚫ |
| EPMVL-HC4210-1D | 21 | M10*1.5 | 18 | 39 | ☐ |
※鎖牙式刀頭尺寸僅供參考，實際規格以現品為主。
本公司保留變更之權利，恕不另行通知。
