高硬度全鎢鋼不等分割不等導程強力型銑刀-圓鼻刀
鎖牙式銑刀（圓鼻刀刃型）

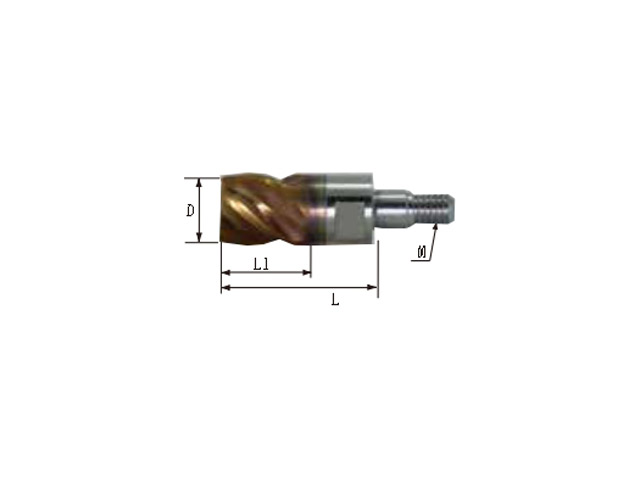

產品規格
單位(Unit): mm
| EPMVL-HC4000-R00-1D 刃長=1D | |||||
|---|---|---|---|---|---|
| 型號Code | 直徑DC | 螺紋Thread size | 刃長APMX | 全長OAL | 在庫Stock |
| EPMVL-HC4080-R03-1D | 8 | 0.3R | M5*0.8 | 8 | ⚫ |
| EPMVL-HC4080-R05-1D | 8 | 0.5R | M5*0.8 | 8 | ⚫ |
| EPMVL-HC4080-R10-1D | 8 | 1R | M5*0.8 | 8 | ⚫ |
| EPMVL-HC4090-R05-1D | 9 | 0.5R | M5*0.8 | 8 | ☐ |
| EPMVL-HC4100-R03-1D | 10 | 0.3R | M5*0.8 | 10 | ⚫ |
| EPMVL-HC4100-R05-1D | 10 | 0.5R | M5*0.8 | 10 | ⚫ |
| EPMVL-HC4100-R10-1D | 10 | 1R | M5*0.8 | 10 | ⚫ |
| EPMVL-HC4100-R20-1D | 10 | 2R | M5*0.8 | 10 | ⚫ |
| EPMVL-HC4110-R10-1D | 11 | 1R | M5*0.8 | 10 | ☐ |
| EPMVL-HC4120-R05-1D | 12 | 0.5R | M6*1.0 | 12 | ⚫ |
| EPMVL-HC4120-R10-1D | 12 | 1R | M6*1.0 | 12 | ⚫ |
| EPMVL-HC4120-R20-1D | 12 | 2R | M6*1.0 | 12 | ⚫ |
| EPMVL-HC4120-R30-1D | 12 | 3R | M6*1.0 | 12 | ⚫ |
| EPMVL-HC4130-R10-1D | 13 | 1R | M6*1.0 | 12 | ☐ |
| EPMVL-HC4160-R05-1D | 16 | 0.5R | M6*1.0 | 15 | ⚫ |
| EPMVL-HC4160-R10-1D | 16 | 1R | M6*1.0 | 15 | ⚫ |
| EPMVL-HC4160-R20-1D | 16 | 2R | M6*1.0 | 15 | ⚫ |
| EPMVL-HC4160-R30-1D | 16 | 3R | M6*1.0 | 15 | ⚫ |
| EPMVL-HC4170-R10-1D | 17 | 1R | M8*1.25 | 15 | ☐ |
| EPMVL-HC4200-R05-1D | 20 | 0.5R | M10*1.5 | 18 | ⚫ |
| EPMVL-HC4200-R10-1D | 20 | 1R | M10*1.5 | 18 | ⚫ |
| EPMVL-HC4200-R20-1D | 20 | 2R | M10*1.5 | 18 | ⚫ |
| EPMVL-HC4200-R30-1D | 20 | 3R | M10*1.5 | 18 | ⚫ |
| EPMVL-HC4210-R10-1D | 21 | 1R | M10*1.5 | 15 | ☐ |
※鎖牙式刀頭尺寸僅供參考，實際規格以現品為主。
本公司保留變更之權利，恕不另行通知。
