4刃圓鼻銑刀-長柄型
產品規格
單位(Unit): mm

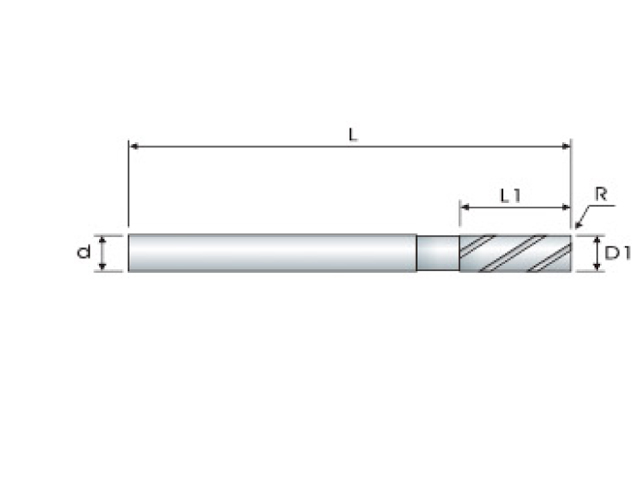

| 型號 Code |
直徑 DC |
球頭R Ball Radius |
刃長 APMX |
全長 OAL |
柄徑 DCON |
刃數 No.F |
在庫 Stock |
|---|---|---|---|---|---|---|---|
| ACRL40300303H-75 | 3 | 0.3R | 8 | 75 | 3 | 4 | ☐ |
| ACRL40300305H-75 | 3 | 0.5R | 8 | 75 | 3 | 4 | ☐ |
| ACRL40300310H-75 | 3 | 1R | 8 | 75 | 3 | 4 | ☐ |
| ACRL40400403H-75 | 4 | 0.3R | 10 | 75 | 4 | 4 | ☐ |
| ACRL40400405H-75 | 4 | 0.5R | 10 | 75 | 4 | 4 | ☐ |
| ACRL40400410H-75 | 4 | 1R | 10 | 75 | 4 | 4 | ☐ |
| ACRL40400415H-75 | 4 | 1.5R | 10 | 75 | 4 | 4 | ☐ |
| ACRL40400403H-100 | 4 | 0.3R | 10 | 100 | 4 | 4 | ☐ |
| ACRL40400405H-100 | 4 | 0.5R | 10 | 100 | 4 | 4 | ☐ |
| ACRL40400410H-100 | 4 | 1R | 10 | 100 | 4 | 4 | ☐ |
| ACRL40400415H-100 | 4 | 1.5R | 10 | 100 | 4 | 4 | ☐ |
| ACRL40600603H-75 | 6 | 0.3R | 15 | 100 | 6 | 4 | ☐ |
| ACRL40600605H-75 | 6 | 0.5R | 15 | 100 | 6 | 4 | ☐ |
| ACRL40600610H-75 | 6 | 1R | 15 | 100 | 6 | 4 | ☐ |
| ACRL40600615H-75 | 6 | 1.5R | 15 | 100 | 6 | 4 | ☐ |
| ACRL40600620H-75 | 6 | 2R | 15 | 100 | 6 | 4 | ☐ |
| ACRL40600603H-100 | 6 | 0.3R | 15 | 100 | 6 | 4 | ☐ |
| ACRL40600605H-100 | 6 | 0.5R | 15 | 100 | 6 | 4 | ☐ |
| ACRL40600610H-100 | 6 | 1R | 15 | 100 | 6 | 4 | ☐ |
| ACRL40600615H-100 | 6 | 1.5R | 15 | 100 | 6 | 4 | ☐ |
| ACRL40600620H-100 | 6 | 2R | 15 | 100 | 6 | 4 | ☐ |
| ACRL40800803H-75 | 8 | 0.3R | 20 | 75 | 8 | 4 | ☐ |
| ACRL40800805H-75 | 8 | 0.5R | 20 | 75 | 8 | 4 | ☐ |
| ACRL40800810H-75 | 8 | 1R | 20 | 75 | 8 | 4 | ☐ |
| ACRL40800815H-75 | 8 | 1.5R | 20 | 75 | 8 | 4 | ☐ |
| ACRL40800820H-75 | 8 | 2R | 20 | 75 | 8 | 4 | ☐ |
| ACRL40800825H-75 | 8 | 2.5R | 20 | 75 | 8 | 4 | ☐ |
| ACRL40800830H-75 | 8 | 3R | 20 | 75 | 8 | 4 | ☐ |
| ACRL40800803H-100 | 8 | 0.3R | 20 | 100 | 8 | 4 | ☐ |
| ACRL40800805H-100 | 8 | 0.5R | 20 | 100 | 8 | 4 | ☐ |
| ACRL40800810H-100 | 8 | 1R | 20 | 100 | 8 | 4 | ☐ |
| ACRL40800815H-100 | 8 | 1.5R | 20 | 100 | 8 | 4 | ☐ |
| ACRL40800820H-100 | 8 | 2R | 20 | 100 | 8 | 4 | ☐ |
| ACRL40800825H-100 | 8 | 2.5R | 20 | 100 | 8 | 4 | ☐ |
| ACRL40800830H-100 | 8 | 3R | 20 | 100 | 8 | 4 | ☐ |
| ACRL41001003H-100 | 10 | 0.3R | 25 | 100 | 10 | 4 | ☐ |
| ACRL41001005H-100 | 10 | 0.5R | 25 | 100 | 10 | 4 | ☐ |
| ACRL41001010H-100 | 10 | 1R | 25 | 100 | 10 | 4 | ☐ |
| ACRL41001015H-100 | 10 | 1.5R | 25 | 100 | 10 | 4 | ☐ |
| ACRL41001020H-100 | 10 | 2R | 25 | 100 | 10 | 4 | ☐ |
| ACRL41001025H-100 | 10 | 2.5R | 25 | 100 | 10 | 4 | ☐ |
| ACRL41001030H-100 | 10 | 3R | 25 | 100 | 10 | 4 | ☐ |
| ACRL41201203H-100 | 12 | 0.3R | 30 | 100 | 12 | 4 | ☐ |
| ACRL41201205H-100 | 12 | 0.5R | 30 | 100 | 12 | 4 | ☐ |
| ACRL41201210H-100 | 12 | 1R | 30 | 100 | 12 | 4 | ☐ |
| ACRL41201215H-100 | 12 | 1.5R | 30 | 100 | 12 | 4 | ☐ |
| ACRL41201220H-100 | 12 | 2R | 30 | 100 | 12 | 4 | ☐ |
| ACRL41201225H-100 | 12 | 2.5R | 30 | 100 | 12 | 4 | ☐ |
| ACRL41201230H-100 | 12 | 3R | 30 | 100 | 12 | 4 | ☐ |
⚫：表示在庫
☐：表示無庫存，為訂製生產品
◉ 優 Excellent ● 可 Good
← 請左右滑動查看 →
| 碳鋼 Carbon Steels |
合金鋼 Alloy Steels |
硬化鋼 Hardened Steels |
高硬度鋼 High Hardened Steels |
銅 Copper |
鑄鐵 Cast Iron |
鋁 Aluminum |
不鏽鋼 Stainless Steels |
鈦合金 Titanium |
鎳鐵合金 Inconel |
|
|---|---|---|---|---|---|---|---|---|---|---|
| HR225~325 | HRC~50 | HRC~50 | HRC~55 | HRC~60 | ||||||
| ◉ | ◉ | ◉ | ◉ | ● | ● | ● | ||||
