高硬度全鎢鋼不等分割不等導程強力型圓鼻銑刀-圓鼻刀刃型
圓鼻刀刃型
產品規格
STC-LP9
單位(Unit): mm

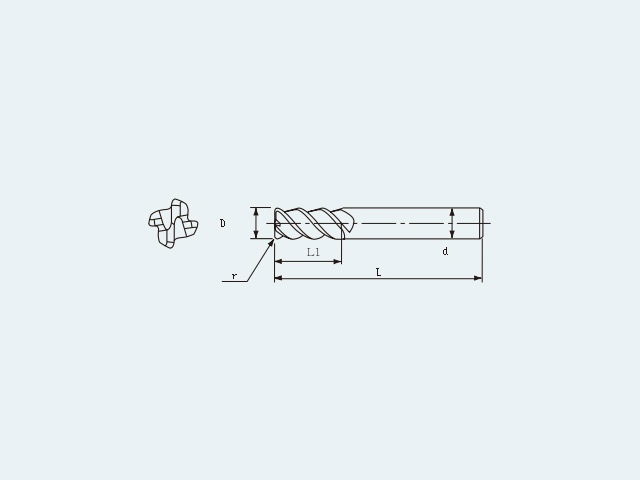

| EPMVLL4000-R00-2.5D 刃長=2.5D | |||||||
|---|---|---|---|---|---|---|---|
| 型號 Code |
直徑 DC |
圓鼻 Radius |
刃長 APMX |
全長 OAL |
柄徑 DCON |
在庫 Stock |
|
| EPMVL4030-R02-4-2.5D | 3 | 0.2R | 7.5 | 50 | 4 | ⚫ | |
| EPMVL4030-R05-4-2.5D | 3 | 0.5R | 7.5 | 50 | 4 | ⚫ | |
| EPMVL4040-R02-4-2.5D | 4 | 0.2R | 10 | 50 | 4 | ⚫ | |
| EPMVL4040-R05-4-2.5D | 4 | 0.5R | 10 | 50 | 4 | ⚫ | |
| EPMVL4040-R10-4-2.5D | 4 | 1R | 10 | 50 | 4 | ⚫ | |
| EPMVL4030-R02-6-2.5d | 3 | 0.2R | 7.5 | 50 | 6 | ⚫ | |
| EPMVL4030-R05-6-2.5D | 3 | 0.5R | 7.5 | 50 | 6 | ⚫ | |
| EPMVL4040-R02-2.5D | 4 | 0.2R | 10 | 50 | 6 | ⚫ | |
| EPMVL4040-R05-2.5D | 4 | 0.5R | 10 | 50 | 6 | ⚫ | |
| EPMVL4040-R10-2.5D | 4 | 1R | 10 | 50 | 6 | ⚫ | |
| EPMVL4050-R02-2.5D | 5 | 0.2R | 12.5 | 50 | 6 | ⚫ | |
| EPMVL4050-R05-2.5D | 5 | 0.5R | 12.5 | 50 | 6 | ⚫ | |
| EPMVL4060-R03-2.5D | 6 | 0.3R | 15 | 50 | 6 | ⚫ | |
| EPMVL4060-R05-2.5D | 6 | 0.5R | 15 | 50 | 6 | ⚫ | |
| EPMVL4060-R10-2.5D | 6 | 1R | 15 | 50 | 6 | ⚫ | |
| EPMVL4080-R03-2.5D | 8 | 0.3R | 20 | 60 | 8 | ⚫ | |
| EPMVL4080-R05-2.5D | 8 | 0.5R | 20 | 60 | 8 | ⚫ | |
| EPMVL4080-R10-2.5D | 8 | 1R | 20 | 60 | 8 | ⚫ | |
| EPMVL4080-R20-2.5D | 8 | 2R | 20 | 60 | 8 | ⚫ | |
| EPMVL4100-R03-2.5D | 10 | 0.3R | 25 | 75 | 10 | ⚫ | |
| EPMVL4100-R05-2.5D | 10 | 0.5R | 25 | 75 | 10 | ⚫ | |
| EPMVL4100-R10-2.5D | 10 | 1R | 25 | 75 | 10 | ⚫ | |
| EPMVL4100-R20-2.5D | 10 | 2R</td | 25 | 75 | 10 | ⚫ | |
| EPMVL4120-R05-2.5D | 12 | 0.5R | 30 | 75 | 12 | ⚫ | |
| EPMVL4120-R10-2.5D | 12 | 1R | 30 | 75 | 12 | ⚫ | |
| EPMVL4120-R20-2.5D | 12 | 2R | 30 | 75 | 12 | ⚫ | |
| EPMVL4120-R30-2.5D | 12 | 3R | 30 | 75 | 12 | ⚫ | |
| EPMVL4160-R05-2.5D | 16 | 0.5R | 40 | 100 | 16 | ☐ | |
| EPMVL4160-R10-2.5D | 16 | 1R | 40 | 100 | 16 | ☐ | |
| EPMVL4160-R20-2.5D | 16 | 2R | 40 | 100 | 16 | ☐ | |
| EPMVL4160-R30-2.5D | 16 | 3R | 40 | 100 | 16 | ☐ | |
| EPMVL4200-R05-2.5D-60 | 20 | 0.5R | 50 | 100 | 20 | ☐ | |
| EPMVL4200-R10-2.5D-60 | 20 | 1R | 50 | 100 | 20 | ☐ | |
| EPMVL4200-R20-2.5D-60 | 20 | 2R | 50 | 100 | 20 | ☐ | |
| EPMVL4200-R30-2.5D-6 | 20 | 3R | 50 | 100 | 20 | ☐ | |
⚫:表示在庫
☐：表示無庫存，為訂製生產品
