高硬度全鎢鋼不等分割不等導程強力型圓鼻銑刀-長柄圓鼻刀刃型（有效長3倍刃型）
長柄圓鼻刀刃型（有效長刃型）
產品規格
STC-LP9
單位(Unit): mm

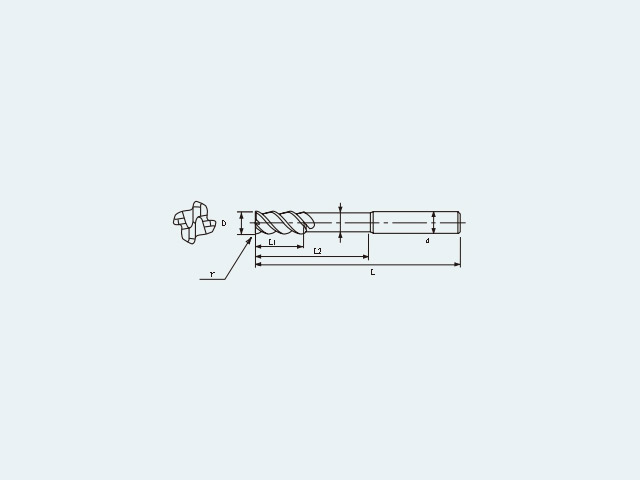

| EPMVLLS-R00-1.5D-3Dc 刃長=1.5D 有效長=3Dc | |||||||
|---|---|---|---|---|---|---|---|
| 型號 Code |
直徑 DC |
圓鼻 Radius |
刃長 APMX |
首下長 UNL |
全長 OAL |
柄徑 DCON |
在庫 Stock |
| EPMVLLS4030-R02-6-1.5D-9 | 3 | 0.2R | 4.5 | 9 | 60 | 6 | ⚫ |
| EPMVLLS4030-R05-6-1.5D-9 | 3 | 0.5R | 4.5 | 9 | 60 | 6 | ⚫ |
| EPMVLLS4040-R02-6-1.5D-12 | 4 | 0.2R | 6 | 12 | 60 | 6 | ⚫ |
| EPMVLLS4040-R05-6-1.5D-12 | 4 | 0.5R | 6 | 12 | 60 | 6 | ⚫ |
| EPMVLLS4040-R10-6-1.5D-12 | 4 | 1R | 6 | 12 | 60 | 6 | ⚫ |
| EPMVLLS4050-R02-1.5D-15 | 5 | 0.2R | 7.5 | 15 | 60 | 6 | ⚫ |
| EPMVLLS4050-R05-1.5D-15 | 5 | 0.5R | 7.5 | 15 | 60 | 6 | ⚫ |
| EPMVLLS4050-R10-1.5D-15 | 5 | 1R | 7.5 | 15 | 60 | 6 | ⚫ |
| EPMVLLS4060-R03-1.5D-18 | 6 | 0.3R | 9 | 18 | 60 | 6 | ⚫ |
| EPMVLLS4060-R05-1.5D-18 | 6 | 0.5R | 9 | 18 | 60 | 6 | ⚫ |
| EPMVLLS4080-R10-1.5D-18 | 6 | 1R | 9 | 18 | 60 | 6 | ⚫ |
| EPMVLLS4080-R03-1.5D-24 | 8 | 0.3R | 12 | 24 | 100 | 8 | ⚫ |
| EPMVLLS4080-R05-1.5D-24 | 8 | 0.5R | 12 | 24 | 100 | 8 | ⚫ |
| EPMVLLS4080-R10-1.5D-24 | 8 | 1R | 12 | 24 | 100 | 8 | ⚫ |
| EPMVLLS4080-R20-1.5D-24 | 8 | 2R | 12 | 24 | 100 | 8 | ⚫ |
| EPMVLL4100-R03-1.5D-30 | 10 | 0.3R | 15 | 30 | 100 | 10 | ⚫ |
| EPMVLLS4100-R05-1.5D-30 | 10 | 0.5R | 15 | 30 | 100 | 10 | ⚫ |
| EPMVLLS4100-R10-1.5D-30 | 10 | 1R | 15 | 30 | 100 | 10 | ⚫ |
| EPMVLLS4100-R20-1.5D-30 | 10 | 2R | 15 | 30 | 100 | 10 | ⚫ |
| EPMVLLS4120-R05-1.5D-36 | 12 | 0.5R | 18 | 36 | 100 | 12 | ⚫ |
| EPMVLLS4120-R10-1.5D-36 | 12 | 1R | 18 | 36 | 100 | 12 | ⚫ |
| EPMVLLS4120-R20-1.5D-36 | 12 | 2R | 18 | 36 | 100 | 12 | ⚫ |
| EPMVLLS4120-R30-1.5D-36 | 12 | 3R | 18 | 36 | 100 | 12 | ⚫ |
| EPMVLLS4160-R05-1.5D-48 | 16 | 0.5R | 24 | 48 | 150 | 16 | ☐ |
| EPMVLLS4160-R10-1.5D-48 | 16 | 1R | 24 | 48 | 150 | 16 | ☐ |
| EPMVLLS4160-R20-1.5D-48 | 16 | 2R | 24 | 48 | 150 | 16 | ☐ |
| EPMVLLS4160-R30-1.5D-48 | 16 | 3R | 24 | 48 | 150 | 16 | ☐ |
| EPMVLLS4200-R05-1.5D-60 | 20 | 0.5R | 30 | 60 | 150 | 20 | ☐ |
| EPMVLLS4200-R10-1.5D-60 | 20 | 1R | 30 | 60 | 150 | 20 | ☐ |
| EPMVLLS4200-R20-1.5D-60 | 20 | 2R | 30 | 60 | 150 | 20 | ☐ |
| EPMVLLS4200-R30-1.5D-60 | 20 | 3R | 30 | 60 | 150 | 20 | ☐ |
⚫:表示在庫
☐：表示無庫存，為訂製生產品
☆ 特殊圓鼻刀規格歡迎來電洽詢
