2刃球型銑刀-長柄型

產品規格

單位(Unit): mm

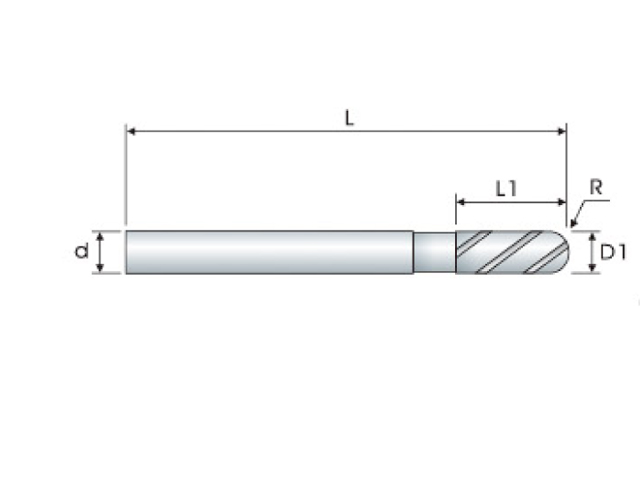

型號 Code	球頭R Ball Radius	直徑 DC	刃長 APMX	全長 OAL	柄徑 DCON	刃數 No.F	在庫 Stock
ABSL201004075H	0.5R	1	2	75	4	2	⚫
ABSL201006075H	0.5R	1	2	75	6	2	⚫
ABSL201006100H	0.5R	1	2	100	6	2	⚫
ABSL201504075H	0.75R	1.5	3	75	4	2	⚫
ABSL201506075H	0.75R	1.5	3	75	6	2	⚫
ABSL201506100H	0.75R	1.5	3	100	6	2	⚫
ABSL202006075H	1R	2	4	75	6	2	⚫
ABSL202006100H	1R	2	4	100	6	2	⚫
ABSL202506075H	1.25R	2.5	5	75	6	2	⚫
ABSL202506100H	1.25R	2.5	5	100	6	2	⚫
ABSL203006075H	1.5R	3	6	75	6	2	⚫
ABSL203006100H	1.5R	3	6	100	6	2	⚫
ABSL203506075H	1.75R	3.5	7	100	6	2	⚫
ABSL204006075H	2R	4	8	75	6	2	⚫
ABSL204006100H	2R	4	8	100	6	2	⚫
ABSL205006075H	2.5R	5	10	75	6	2	⚫
ABSL205006100H	2.5R	5	10	100	6	2	⚫
ABSL206006075H	3R	6	12	75	6	2	⚫
ABSL206006100H	3R	6	12	100	6	2	⚫
ABSL206006150H	3R	6	12	150	6	2	⚫
ABSL208008075H	4R	8	16	75	8	2	⚫
ABSL208008100H	4R	8	16	100	8	2	⚫
ABSL208008150H	4R	8	16	150	8	2	⚫
ABSL210010100H	5R	10	20	100	10	2	⚫
ABSL210010150H	5R	10	20	150	10	2	⚫
ABSL210010200H	5R	10	20	200	10	2	☐
ABSL212012100H	6R	12	24	100	12	2	⚫
ABSL212012150H	6R	12	24	150	12	2	⚫
ABSL212012200H	6R	12	24	200	12	2	☐
ABSL216016150H	8R	16	32	150	16	2	⚫
ABSL216016200H	8R	16	32	200	16	2	☐
ABSL220020150H	10R	20	40	150	20	2	⚫
ABSL220020200H	10R	20	40	200	20	2	☐

⚫：表示在庫

☐：表示無庫存，為訂製生產品

◉ 優 Excellent　 ● 可 Good

← 請左右滑動查看 →

碳鋼 Carbon Steels	合金鋼 Alloy Steels	硬化鋼 Hardened Steels		高硬度鋼 High Hardened Steels	銅 Copper	鑄鐵 Cast Iron	鋁 Aluminum	不鏽鋼 Stainless Steels	鈦合金 Titanium	鎳鐵合金 Inconel
HR225~325	HRC~50	HRC~50	HRC~55	HRC~60	銅 Copper	鑄鐵 Cast Iron	鋁 Aluminum	不鏽鋼 Stainless Steels	鈦合金 Titanium	鎳鐵合金 Inconel
◉	◉	◉	◉					●	●	●
