鎢鋼4刃圓鼻立銑刀
產品規格
單位(Unit): mm

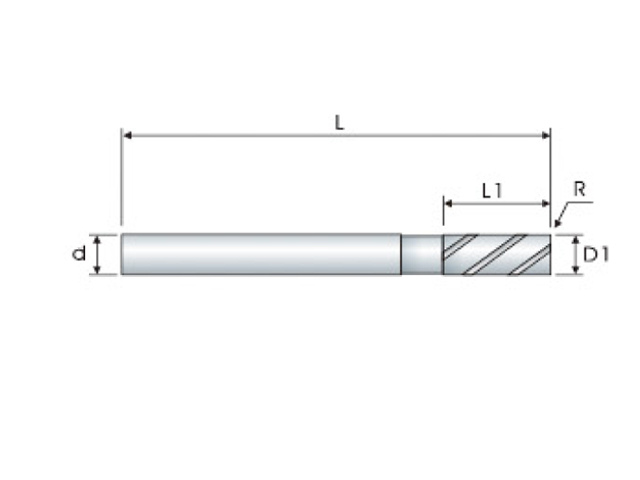

| 型號Code | 直徑DC | R角Corner Radius | 刃長APMX | 全長OAL | 柄徑DCON | 刃數No.F | 在庫Stock |
|---|---|---|---|---|---|---|---|
| JCR40300302A | 3 | 0.2R | 8 | 50 | 3 | 4 | ⚫ |
| JCR40300303A | 3 | 0.3R | 8 | 50 | 3 | 4 | ⚫ |
| JCR40300305A | 3 | 0.5R | 8 | 50 | 3 | 4 | ⚫ |
| JCR40300310A | 3 | 1R | 8 | 50 | 3 | 4 | ⚫ |
| JCR40300302A | 3 | 0.2R | 8 | 50 | 3 | 4 | ⚫ |
| JCR40300303A | 3 | 0.3R | 8 | 50 | 3 | 4 | ⚫ |
| JCR40100402A | 1 | 0.2R | 3 | 50 | 4 | 4 | ⚫ |
| JCR40100403A | 1 | 0.3R | 3 | 50 | 4 | 4 | ⚫ |
| JCR40150402A | 1.5 | 0.2R | 4 | 50 | 4 | 4 | ⚫ |
| JCR40150403A | 1.5 | 0.3R | 4 | 50 | 4 | 4 | ⚫ |
| JCR40200402A | 2 | 0.2R | 6 | 50 | 4 | 4 | ⚫ |
| JCR40200403A | 2 | 0.3R | 6 | 50 | 4 | 4 | ⚫ |
| JCR40200405A | 2 | 0.5R | 6 | 50 | 4 | 4 | ⚫ |
| JCR40250402A | 2.5 | 0.2R | 8 | 50 | 4 | 4 | ⚫ |
| JCR40250405A | 2.5 | 0.5R | 8 | 50 | 4 | 4 | ⚫ |
| JCR40300402A | 3 | 0.2R | 8 | 50 | 4 | 4 | ⚫ |
| JCR40300403A | 3 | 0.3R | 8 | 50 | 4 | 4 | ⚫ |
| JCR40300405A | 3 | 0.5R | 8 | 50 | 4 | 4 | ⚫ |
| JCR40300410A | 3 | 1R | 8 | 50 | 4 | 4 | ⚫ |
| JCR40400402A | 4 | 0.2R | 10 | 50 | 4 | 4 | ⚫ |
| JCR40400403A | 4 | 0.3R | 10 | 50 | 4 | 4 | ⚫ |
| JCR40400405A | 4 | 0.5R | 10 | 50 | 4 | 4 | ⚫ |
| JCR40400410A | 4 | 1R | 10 | 50 | 4 | 4 | ⚫ |
| JCR40400415A | 4 | 1.5R | 10 | 50 | 4 | 4 | ⚫ |
| JCR40500602A | 5 | 0.2R | 13 | 50 | 6 | 4 | ⚫ |
| JCR40500603A | 5 | 0.3R | 13 | 50 | 6 | 4 | ⚫ |
| JCR40500605A | 5 | 0.5R | 13 | 50 | 6 | 4 | ⚫ |
| JCR40500610A | 5 | 1R | 13 | 50 | 6 | 4 | ⚫ |
| JCR40600602A | 6 | 0.2R | 15 | 50 | 6 | 4 | ⚫ |
| JCR40600603A | 6 | 0.3R | 15 | 50 | 6 | 4 | ⚫ |
| JCR40600605A | 6 | 0.5R | 15 | 50 | 6 | 4 | ⚫ |
| JCR40600610A | 6 | 1R | 15 | 50 | 6 | 4 | ⚫ |
| JCR40600615A | 6 | 1.5R | 15 | 50 | 6 | 4 | ⚫ |
| JCR40600620A | 6 | 2R | 15 | 50 | 6 | 4 | ⚫ |
| JCR40800803A | 8 | 0.3R | 20 | 60 | 8 | 4 | ⚫ |
| JCR40800805A | 8 | 0.5R | 20 | 60 | 8 | 4 | ⚫ |
| JCR40800810A | 8 | 1R | 20 | 60 | 8 | 4 | ⚫ |
| JCR40800815A | 8 | 1.5R | 20 | 60 | 8 | 4 | ⚫ |
| JCR40800820A | 8 | 2R | 20 | 60 | 8 | 4 | ⚫ |
| JCR40800825A | 8 | 2.5R | 20 | 60 | 8 | 4 | ⚫ |
| JCR40800830A | 8 | 3R | 20 | 60 | 8 | 4 | ⚫ |
| JCR41001003A | 10 | 0.3R | 25 | 75 | 10 | 4 | ⚫ |
| JCR41001005A | 10 | 0.5R | 25 | 75 | 10 | 4 | ⚫ |
| JCR41001010A | 10 | 1R | 25 | 75 | 10 | 4 | ⚫ |
| JCR41001015A | 10 | 1.5R | 25 | 75 | 10 | 4 | ⚫ |
| JCR41001020A | 10 | 2R | 25 | 75 | 10 | 4 | ⚫ |
| JCR41001025A | 10 | 2.5R | 25 | 75 | 10 | 4 | ⚫ |
| JCR41001030A | 10 | 3R | 25 | 75 | 10 | 4 | ⚫ |
| JCR41201203A | 12 | 0.3R | 30 | 75 | 12 | 4 | ⚫ |
| JCR41201205A | 12 | 0.5R | 30 | 75 | 12 | 4 | ⚫ |
| JCR41201210A | 12 | 1R | 30 | 75 | 12 | 4 | ⚫ |
| JCR41201215A | 12 | 1.5R | 30 | 75 | 12 | 4 | ⚫ |
| JCR41201220A | 12 | 2R | 30 | 75 | 12 | 4 | ⚫ |
| JCR41201225A | 12 | 2.5R | 30 | 75 | 12 | 4 | ⚫ |
| JCR41201230A | 12 | 3R | 30 | 75 | 12 | 4 | ⚫ |
⚫：表示在庫
☐：表示無庫存，為訂製生產品
◉ 優 Excellent ● 可 Good
← 請左右滑動查看 →
| 碳鋼 Carbon Steels |
合金鋼 Alloy Steels |
硬化鋼 Hardened Steels |
高硬度鋼 High Hardened Steels |
銅 Copper |
鑄鐵 Cast Iron |
鋁 Aluminum |
不鏽鋼 Stainless Steels |
鈦合金 Titanium |
鎳鐵合金 Inconel |
|
|---|---|---|---|---|---|---|---|---|---|---|
| HR225~325 | HRC~50 | HRC~50 | HRC~55 | HRC~60 | ||||||
| ◉ | ◉ | ◉ | ● | ● | ● | ● | ||||
