鎢鋼4刃圓鼻立銑刀-長柄型

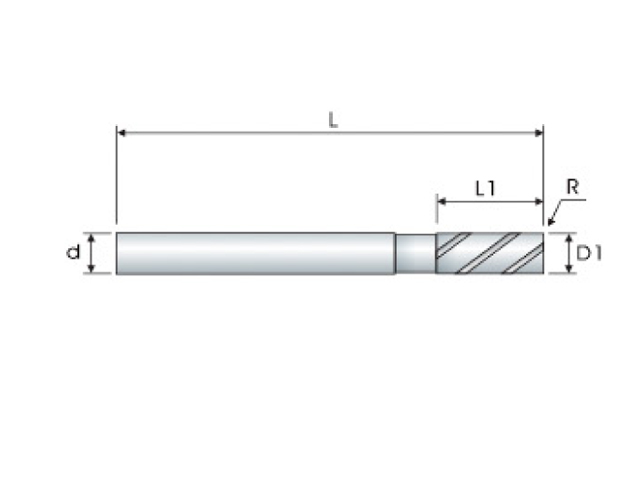

產品規格
單位(Unit): mm
| 型號Code | 直徑DC | R角Corner Radius | 刃長APMX | 全長OAL | 柄徑DCON | 刃數No.F | 在庫Stock |
|---|---|---|---|---|---|---|---|
| JCRL40300303A-75 | 3 | 0.3R | 8 | 75 | 3 | 2 | ⚫ |
| JCRL40300305A-75 | 3 | 0.5R | 8 | 75 | 3 | 2 | ⚫ |
| JCRL40300310A-75 | 3 | 1R | 8 | 75 | 3 | 2 | ⚫ |
| JCRL40400403A-75 | 4 | 0.3R | 10 | 75 | 4 | 2 | ⚫ |
| JCRL40400405A-75 | 4 | 0.5R | 10 | 75 | 4 | 2 | ⚫ |
| JCRL40400410A-75 | 4 | 1R | 10 | 75 | 4 | 2 | ⚫ |
| JCRL40400415A-75 | 4 | 1.5R | 10 | 75 | 4 | 2 | ⚫ |
| JCRL40400403A-100 | 4 | 0.3R | 10 | 100 | 4 | 2 | ☐ |
| JCRL40400405A-100 | 4 | 0.5R | 10 | 100 | 4 | 2 | ☐ |
| JCRL40400410A-100 | 4 | 1R | 10 | 100 | 4 | 2 | ☐ |
| JCRL40400415A-100 | 4 | 1.5R | 10 | 100 | 4 | 2 | ☐ |
| JCRL40600603A-75 | 6 | 0.3R | 15 | 100 | 6 | 2 | ⚫ |
| JCRL40600605A-75 | 6 | 0.5R | 15 | 100 | 6 | 2 | ⚫ |
| JCRL40600610A-75 | 6 | 1R | 15 | 100 | 6 | 2 | ⚫ |
| JCRL40600615A-75 | 6 | 1.5R | 15 | 100 | 6 | 2 | ⚫ |
| JCRL40600620A-75 | 6 | 2R | 15 | 100 | 6 | 2 | ⚫ |
| JCRL40600603A-100 | 6 | 0.3R | 15 | 100 | 6 | 2 | ☐ |
| JCRL40600605A-100 | 6 | 0.5R | 15 | 100 | 6 | 2 | ☐ |
| JCRL40600610A-100 | 6 | 1R | 15 | 100 | 6 | 2 | ☐ |
| JCRL40600615A-100 | 6 | 1.5R | 15 | 100 | 6 | 2 | ☐ |
| JCRL40600620A-100 | 6 | 2R | 15 | 100 | 6 | 2 | ☐ |
| JCRL40800803A-75 | 8 | 0.3R | 20 | 75 | 8 | 2 | ⚫ |
| JCRL40800805A-75 | 8 | 0.5R | 20 | 75 | 8 | 2 | ⚫ |
| JCRL40800810A-75 | 8 | 1R | 20 | 75 | 8 | 2 | ⚫ |
| JCRL40800815A-75 | 8 | 1.5R | 20 | 75 | 8 | 2 | ⚫ |
| JCRL40800820A-75 | 8 | 2R | 20 | 75 | 8 | 2 | ⚫ |
| JCRL40800825A-75 | 8 | 2.5R | 20 | 75 | 8 | 2 | ⚫ |
| JCRL40800830A-75 | 8 | 3R | 20 | 75 | 8 | 2 | ⚫ |
| JCRL40800803A-100 | 8 | 0.3R | 20 | 100 | 8 | 2 | ☐ |
| JCRL40800805A-100 | 8 | 0.5R | 20 | 100 | 8 | 2 | ☐ |
| JCRL40800810A-100 | 8 | 1R | 20 | 100 | 8 | 2 | ☐ |
| JCRL40800815A-100 | 8 | 1.5R | 20 | 100 | 8 | 2 | ☐ |
| JCRL40800820A-100 | 8 | 2R | 20 | 100 | 8 | 2 | ☐ |
| JCRL40800825A-100 | 8 | 2.5R | 20 | 100 | 8 | 2 | ☐ |
| JCRL40800830A-100 | 8 | 3R | 20 | 100 | 8 | 2 | ☐ |
| JCRL41001003A-100 | 10 | 0.3R | 25 | 100 | 10 | 2 | ⚫ |
| JCRL41001005A-100 | 10 | 0.5R | 25 | 100 | 10 | 2 | ⚫ |
| JCRL41001010A-100 | 10 | 1R | 25 | 100 | 10 | 2 | ⚫ |
| JCRL41001015A-100 | 10 | 1.5R | 25 | 100 | 10 | 2 | ⚫ |
| JCRL41001020A-100 | 10 | 2R | 25 | 100 | 10 | 2 | ⚫ |
| JCRL41001025A-100 | 10 | 2.5R | 25 | 100 | 10 | 2 | ⚫ |
| JCRL41001030A-100 | 10 | 3R | 25 | 100 | 10 | 2 | ⚫ |
| JCRL41201203A-100 | 12 | 0.3R | 30 | 100 | 12 | 2 | ⚫ |
| JCRL41201205A-100 | 12 | 0.5R | 30 | 100 | 12 | 2 | ⚫ |
| JCRL41201210A-100 | 12 | 1R | 30 | 100 | 12 | 2 | ⚫ |
| JCRL41201215A-100 | 12 | 1.5R | 30 | 100 | 12 | 2 | ⚫ |
| JCRL41201220A-100 | 12 | 2R | 30 | 100 | 12 | 2 | ⚫ |
| JCRL41201225A-100 | 12 | 2.5R | 30 | 100 | 12 | 2 | ⚫ |
| JCRL41201230A-100 | 12 | 3R | 30 | 100 | 12 | 2 | ⚫ |
⚫：表示在庫
☐：表示無庫存，為訂製生產品
◉ 優 Excellent ● 可 Good
← 請左右滑動查看 →
| 碳鋼 Carbon Steels |
合金鋼 Alloy Steels |
硬化鋼 Hardened Steels |
高硬度鋼 High Hardened Steels |
銅 Copper |
鑄鐵 Cast Iron |
鋁 Aluminum |
不鏽鋼 Stainless Steels |
鈦合金 Titanium |
鎳鐵合金 Inconel |
|
|---|---|---|---|---|---|---|---|---|---|---|
| HR225~325 | HRC~50 | HRC~50 | HRC~55 | HRC~60 | ||||||
| ◉ | ◉ | ◉ | ● | ● | ● | ● | ||||
