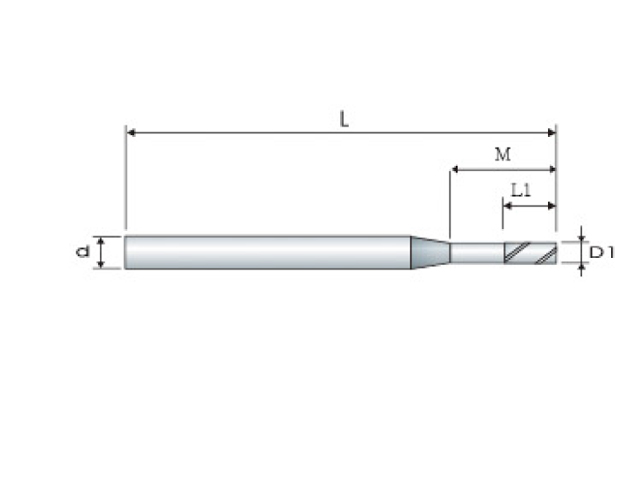

2刃立銑刀-長頸型
產品規格
單位(Unit): mm
| 型號Code | 直徑DC | 刃長APMX | 有效長UNL | 全長OAL | 柄徑DCON | 刃數No.F | 在庫Stock |
|---|---|---|---|---|---|---|---|
| ADS200502H | 0.5 | 0.75 | 2 | 50 | 4 | 2 | ☐ |
| ADS200504H | 0.5 | 0.75 | 4 | 50 | 4 | 2 | ☐ |
| ADS200506H | 0.5 | 0.75 | 6 | 50 | 4 | 2 | ☐ |
| ADS200602H | 0.6 | 0.9 | 2 | 50 | 4 | 2 | ☐ |
| ADS200604H | 0.6 | 0.9 | 4 | 50 | 4 | 2 | ☐ |
| ADS200606H | 0.6 | 0.9 | 6 | 50 | 4 | 2 | ☐ |
| ADS200704H | 0.7 | 1.1 | 4 | 50 | 4 | 2 | ☐ |
| ADS200706H | 0.7 | 1.1 | 6 | 50 | 4 | 2 | ☐ |
| ADS200804H | 0.8 | 1.2 | 4 | 50 | 4 | 2 | ☐ |
| ADS200806H | 0.8 | 1.2 | 6 | 50 | 4 | 2 | ☐ |
| ADS200808H | 0.8 | 1.2 | 6 | 50 | 4 | 2 | ☐ |
| ADS200906H | 0.9 | 1.4 | 6 | 50 | 4 | 2 | ☐ |
| ADS200908H | 0.9 | 1.4 | 8 | 50 | 4 | 2 | ☐ |
| ADS200910H | 0.9 | 1.4 | 10 | 50 | 4 | 2 | ☐ |
| ADS201006H | 1 | 1.5 | 6 | 50 | 4 | 2 | ☐ |
| ADS201008H | 1 | 1.5 | 8 | 50 | 4 | 2 | ☐ |
| ADS201010H | 1 | 1.5 | 10 | 50 | 4 | 2 | ☐ |
| ADS201012H | 1 | 1.5 | 12 | 50 | 4 | 2 | ☐ |
| ADS201016H | 1 | 1.5 | 16 | 50 | 4 | 2 | ☐ |
| ADS201506H | 1.5 | 2.3 | 6 | 50 | 4 | 2 | ☐ |
| ADS201508H | 1.5 | 2.3 | 8 | 50 | 4 | 2 | ☐ |
| ADS201510H | 1.5 | 2.3 | 10 | 50 | 4 | 2 | ☐ |
| ADS201512H | 1.5 | 2.3 | 12 | 50 | 4 | 2 | ☐ |
| ADS201514H | 1.5 | 2.3 | 14 | 50 | 4 | 2 | ☐ |
| ADS201516H | 1.5 | 2.3 | 16 | 50 | 4 | 2 | ☐ |
| ADS201518H | 1.5 | 2.3 | 18 | 50 | 4 | 2 | ☐ |
| ADS201520H | 1.5 | 2.3 | 20 | 50 | 4 | 2 | ☐ |
| ADS202006H | 2 | 3 | 6 | 50 | 4 | 2 | ☐ |
| ADS202008H | 2 | 3 | 8 | 50 | 4 | 2 | ☐ |
| ADS202010H | 2 | 3 | 10 | 50 | 4 | 2 | ☐ |
| ADS202012H | 2 | 3 | 12 | 50 | 4 | 2 | ☐ |
| ADS202014H | 2 | 3 | 14 | 50 | 4 | 2 | ☐ |
| ADS202016H | 2 | 3 | 16 | 50 | 4 | 2 | ☐ |
| ADS202018H | 2 | 3 | 18 | 50 | 4 | 2 | ☐ |
| ADS202020H | 2 | 3 | 20 | 50 | 4 | 2 | ☐ |
| ADS202508H | 2.5 | 4 | 8 | 50 | 4 | 2 | ☐ |
| ADS202510H | 2.5 | 4 | 10 | 50 | 4 | 2 | ☐ |
| ADS202512H | 2.5 | 4 | 12 | 50 | 4 | 2 | ☐ |
| ADS202514H | 2.5 | 4 | 14 | 50 | 4 | 2 | ☐ |
| ADS202516H | 2.5 | 4 | 16 | 50 | 4 | 2 | ☐ |
| ADS202520H | 2.5 | 4 | 20 | 50 | 4 | 2 | ☐ |
| ADS203008H | 3 | 4.5 | 8 | 50 | 6 | 2 | ☐ |
| ADS203010H | 3 | 4.5 | 10 | 50 | 6 | 2 | ☐ |
| ADS203012H | 3 | 4.5 | 12 | 50 | 6 | 2 | ☐ |
| ADS203016H | 3 | 4.5 | 16 | 50 | 6 | 2 | ☐ |
| ADS203020H | 3 | 4.5 | 20 | 50 | 6 | 2 | ☐ |
| ADS203025H | 3 | 4.5 | 25 | 50 | 6 | 2 | ☐ |
| ADS204012H | 4 | 6 | 12 | 50 | 6 | 2 | ☐ |
| ADS204016H | 4 | 6 | 16 | 60 | 6 | 2 | ☐ |
| ADS204020H | 4 | 6 | 20 | 75 | 6 | 2 | ☐ |
| ADS204025H | 4 | 6 | 25 | 75 | 6 | 2 | ☐ |
| ADS204030H | 4 | 6 | 30 | 75 | 6 | 2 | ☐ |
| ADS204035H | 4 | 6 | 35 | 75 | 6 | 2 | ☐ |
☐：表示在庫
☐：表示無庫存，為訂製生產品
◉ 優 Excellent ● 可 Good
← 請左右滑動查看 →
| 碳鋼 Carbon Steels |
合金鋼 Alloy Steels |
硬化鋼 Hardened Steels |
高硬度鋼 High Hardened Steels |
銅 Copper |
鑄鐵 Cast Iron |
鋁 Aluminum |
不鏽鋼 Stainless Steels |
鈦合金 Titanium |
鎳鐵合金 Inconel |
|
|---|---|---|---|---|---|---|---|---|---|---|
| HR225~325 | HRC~50 | HRC~50 | HRC~55 | HRC~60 | ||||||
| ◉ | ◉ | ◉ | ◉ | ● | ● | ● | ||||
