4刃立銑刀-長柄型
產品規格

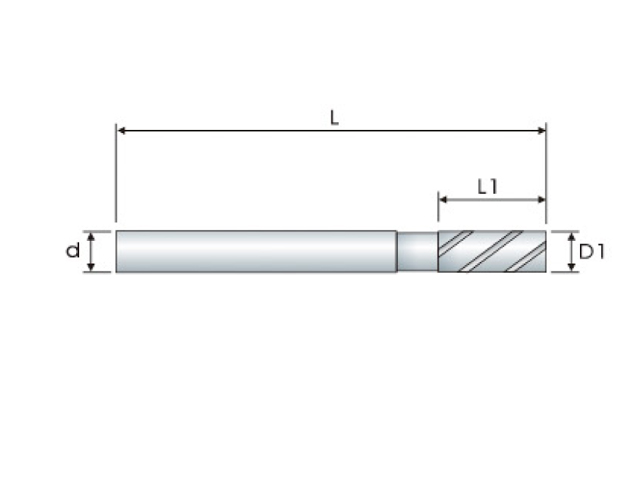

單位(Unit): mm
| 型號Code | 直徑DC | 刃長APMX | 全長OAL | 柄徑DCON | 刃數No.F | 在庫Stock |
|---|---|---|---|---|---|---|
| ACSL403003075H | 3 | 6 | 75 | 3 | 4 | ☐ |
| ACSL401004075H | 1 | 2.5 | 75 | 4 | 4 | ☐ |
| ACSL401504075H | 1.5 | 3 | 75 | 4 | 4 | ☐ |
| ACSL402004075H | 2 | 5 | 75 | 4 | 2 | ☐ |
| ACSL403004075H | 3 | 6 | 75 | 4 | 4 | ☐ |
| ACSL404004075H | 4 | 9 | 75 | 4 | 4 | ☐ |
| ACSL404004100H | 4 | 9 | 100 | 4 | 4 | ☐ |
| ACSL403006075H | 3 | 6 | 75 | 6 | 4 | ☐ |
| ACSL404006075H | 4 | 9 | 75 | 6 | 4 | ☐ |
| ACSL404006100H | 4 | 9 | 100 | 6 | 4 | ☐ |
| ACSL405006075H | 5 | 12 | 75 | 6 | 4 | ☐ |
| ACSL405006100H | 5 | 12 | 100 | 6 | 4 | ☐ |
| ACSL406006075H | 6 | 13 | 75 | 6 | 4 | ☐ |
| ACSL406006100H | 6 | 13 | 100 | 6 | 4 | ☐ |
| ACSL408008075H | 8 | 20 | 75 | 8 | 4 | ☐ |
| ACSL408008100H | 8 | 20 | 100 | 8 | 4 | ☐ |
| ACSL410010100H | 10 | 25 | 100 | 10 | 4 | ☐ |
| ACSL410010150H | 10 | 25 | 150 | 10 | 4 | ☐ |
| ACSL412012100H | 12 | 30 | 100 | 12 | 4 | ☐ |
| ACSL412012150H | 12 | 30 | 150 | 12 | 4 | ☐ |
| ACSL416016150H | 16 | 45 | 150 | 16 | 4 | ☐ |
| ACSL420020150H | 20 | 45 | 150 | 20 | 4 | ☐ |
☐：表示在庫
☐：表示無庫存，為訂製生產品
◉ 優 Excellent ● 可 Good
← 請左右滑動查看 →
| 碳鋼 Carbon Steels |
合金鋼 Alloy Steels |
硬化鋼 Hardened Steels |
高硬度鋼 High Hardened Steels |
銅 Copper |
鑄鐵 Cast Iron |
鋁 Aluminum |
不鏽鋼 Stainless Steels |
鈦合金 Titanium |
鎳鐵合金 Inconel |
|
|---|---|---|---|---|---|---|---|---|---|---|
| HR225~325 | HRC~50 | HRC~50 | HRC~55 | HRC~60 | ||||||
| ◉ | ◉ | ◉ | ◉ | ● | ● | ● | ||||
