4刃45° 立銑刀
產品規格

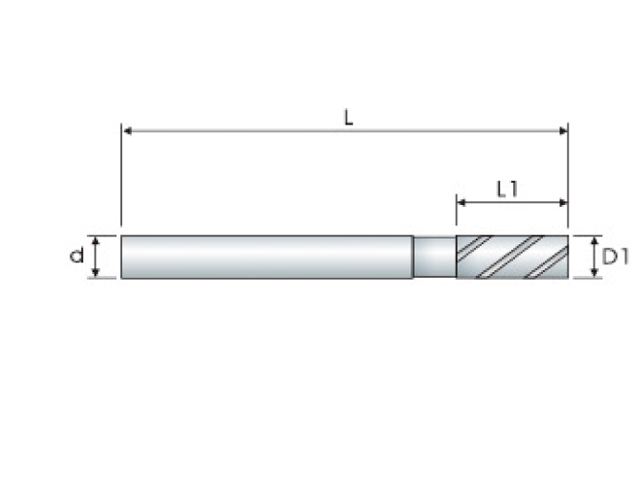

單位(Unit): mm
| 型號Code | 直徑DC | 刃長APMX | 全長OAL | 柄徑DCON | 刃數No.F | 在庫Stock |
|---|---|---|---|---|---|---|
| JHS403003A | 3 | 8 | 50 | 3 | 4 | ⚫ |
| JHS401004A | 1 | 3 | 50 | 4 | 4 | ⚫ |
| JHS401504A | 1.5 | 4 | 50 | 4 | 4 | ⚫ |
| JHS402004A | 2 | 6 | 50 | 4 | 4 | ⚫ |
| JHS402504A | 2.5 | 8 | 50 | 4 | 4 | ⚫ |
| JHS403004A | 3 | 8 | 50 | 4 | 4 | ⚫ |
| JHS403504A | 3.5 | 10 | 50 | 4 | 4 | ⚫ |
| JHS404004A | 4 | 11 | 50 | 4 | 4 | ⚫ |
| JHS401006A | 1 | 3 | 50 | 6 | 4 | ⚫ |
| JHS401506A | 1.5 | 4 | 50 | 6 | 4 | ⚫ |
| JHS402006A | 2 | 6 | 50 | 6 | 4 | ⚫ |
| JHS402506A | 2.5 | 8 | 50 | 6 | 4 | ⚫ |
| JHS403006A | 3 | 8 | 50 | 6 | 4 | ⚫ |
| JHS403506A | 3.5 | 10 | 50 | 6 | 4 | ⚫ |
| JHS404006A | 4 | 11 | 50 | 6 | 4 | ⚫ |
| JHS404506A | 4.5 | 13 | 50 | 6 | 4 | ⚫ |
| JHS405006A | 5 | 13 | 50 | 6 | 4 | ⚫ |
| JHS405506A | 5.5 | 13 | 50 | 6 | 4 | ⚫ |
| JHS406006A | 6 | 16 | 60 | 8 | 4 | ⚫ |
| JHS406508A | 6.5 | 16 | 60 | 8 | 4 | ⚫ |
| JHS407008A | 7 | 16 | 60 | 8 | 4 | ⚫ |
| JHS407508A | 7.5 | 19 | 60 | 8 | 4 | ⚫ |
| JHS408008A | 8 | 20 | 60 | 8 | 4 | ⚫ |
| JHS408510A | 8.5 | 20 | 75 | 10 | 4 | ⚫ |
| JHS409010A | 9 | 20 | 75 | 10 | 4 | ⚫ |
| JHS409510A | 9.5 | 25 | 75 | 10 | 4 | ⚫ |
| JHS410010A | 10 | 30 | 75 | 10 | 4 | ⚫ |
| JHS410512A | 10.5 | 30 | 75 | 12 | 4 | ⚫ |
| JHS411012A | 11 | 30 | 75 | 12 | 4 | ⚫ |
| JHS411512A | 11.5 | 30 | 75 | 12 | 4 | ⚫ |
| JHS412012A | 12 | 32 | 75 | 12 | 4 | ⚫ |
| JHS414016A | 14 | 40 | 100 | 16 | 4 | ⚫ |
| JHS416016A | 16 | 40 | 100 | 16 | 4 | ⚫ |
| JHS418020A | 18 | 45 | 100 | 20 | 4 | ⚫ |
| JHS420020A | 20 | 45 | 100 | 20 | 4 | ⚫ |
⚫：表示在庫
☐：表示無庫存，為訂製生產品
◉ 優 Excellent ● 可 Good
← 請左右滑動查看 →
| 碳鋼 Carbon Steels |
合金鋼 Alloy Steels |
硬化鋼 Hardened Steels |
高硬度鋼 High Hardened Steels |
銅 Copper |
鑄鐵 Cast Iron |
鋁 Aluminum |
不鏽鋼 Stainless Steels |
鈦合金 Titanium |
鎳鐵合金 Inconel |
|
|---|---|---|---|---|---|---|---|---|---|---|
| HR225~325 | HRC~50 | HRC~50 | HRC~55 | HRC~60 | ||||||
| ◉ | ◉ | ◉ | ● | ● | ● | ● | ||||
